　　GC系列旋回破碎机合用于各类岩石和矿石的低级破碎
。相对其它低级破碎设备，拥有处置量大，破碎效能高，破碎比大，产品粒度均匀，低能耗，破碎腔内磨损均匀等特点，适合特大出产规模的前提下使用
。

　　产品特点Features

　　1.破碎腔合用于大粒径入料要求，破碎机能最佳
。

　　2.拥有表置调整齿轮侧隙装置，调整和守护越发方便
。

　　3.横梁无需拆卸马上更换横梁衬套和油封，大量削减设备停车功夫，削减因守护造成的产量损失
。

　　4.选取平衡式设计，设备在工作运行状态时冲击力幼，越发不变靠得住
。

　　5.高强度的机架设计，适应各类恶劣工况环境
。

　　6.配有主轴定位系统，能够轻松调节主轴，调整排料口的大幼
。

　　7.主轴和动锥采取一体式结构设计，预防破碎过程中出现动锥松动
。

　　8.光滑系统，液压系统按？榛杓，各自独立运行，通过与主电机连锁，基于PLC节造系统，可实现油温、流量、压力、功率、异常电压电流等监测、纪录和

；
。

点击查看原图

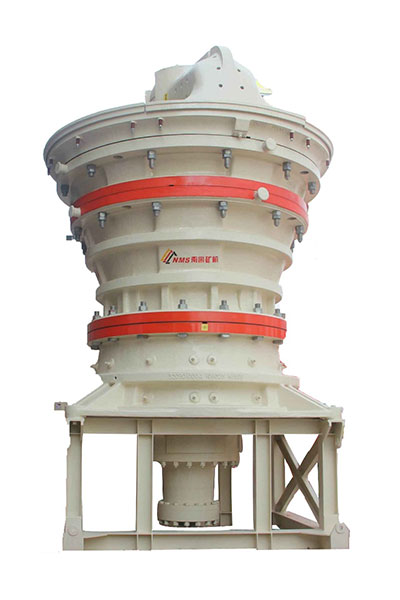

GC series gyratory crusher is used in the primary crushing of various rocks, features as follows: large capacity, higher crushing efficiency,larger reduction ratio, even product size, lower energy design, etc., which is fit for the application of larger capacity.

Features

1.Crushing chamber meets the requirement of the larger feed size with perfect crushing performance.

2.It is more convenient to adjust and maintain with external gear side tolerance adjustment.

3.The cross beam bushing and the seal can be replaced without dismantling cross beam, so as to reduce the shut-down time and production loss caused by maintenance.

4.Adopting the balanced design, the device has small impact force and more stable during operation.

5.With robust frame design, the crusher fits various tough applications.

6.Equipped with mainshaft positioning system, it can easily adjust the mainshaft and CSS
。

7.Integrated design of mainshaft and mantle to avoid the loose mantle during the operation.

8.Lubrication system, hydraulic system according to the modular design, operated independently, with the main motor chain, based on PLC control system, which can realize the oil temperature, flow, pressure, power, abnormal voltage current monitoring, recording and protection.
